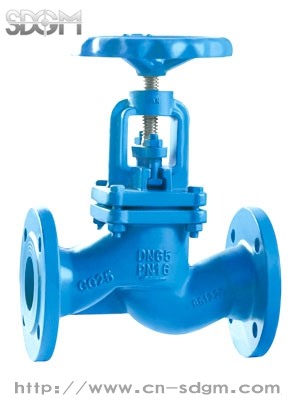

JH41H-16

Name:JH41H-16

Details


FLANGE END SDNR GLOBE VALVE

Scope Of Application:

Norminal pressure

1.6MPa

suitable pressure

water

test pressure

shell

2.4MPa

seat

1.76MPa

Technical Requirement:

  1. Design,manufacture conforms to DIN 3356.
  2. Face to face dimension confirm to Series 1 of BS EN 558-1.
  3. Flange drilled conforms to BS EN1092.

SIZE

L

D

D1

D2

B

f

n-d

Do

15

130

95

65

46

14

2

4-14

100

20

150

105

75

56

16

2

4-14

100

25

160

115

85

65

16

3

4-14

120

32

180

140

100

76

18

3

4-19

120

40

200

150

110

84

18

3

4-19

140

50

230

165

125

99

20

3

4-19

140

65

290

185

145

118

20

3

4-19

200

80

310

200

160

132

22

3

8-19

200

100

350

220

180

156

24

3

8-19

240

125

400

250

210

184

26

3

8-19

280

150

480

285

240

211

26

3

8-23

315

200

600

340

295

266

30

3

12-23

360

250

730

405

355

319

32

3

12-28

400

300

850

460

410

370

32

4

12-28

400


18

T-bolt

steel

DIN17100 RSt37-2

GB700-88 Q235

17

nut

steel

DIN17100 RSt37-2

GB700-88 Q235

16

stem

stainless steel

DIN17440 X20Cr13

GB1220-92 2Cr13

15

stem nut

cast brass



GB1176-87 ZCuZn38Mn2Pb2

14

screw

steel

DIN17100 RSt37-2

GB700-88 Q235

13

handwheel

cast iron

DIN1691 GG25

GB9439-88 HT250

12

washer

steel

DIN17100 RSt37-2

GB700-88 Q235

11

nut

steel

DIN17100 RSt37-2

GB700-88 Q235

10

gland follower

ductile iron

DIN1693 GGG50

GB1348-88 QT500-7

9

packing

graphite



GB3518-83 LC35-999

8

bonnet

cast iron

DIN1691 GG25

GB9439-88 HT250

7

nut

steel

DIN17100 RSt37-2

GB700-88 Q235

6

bolt

steel

DIN17100 RSt37-2

GB700-88 Q235

5

gasket

grapite



GB3518-83 LC35-999

4

disc

cast iron

DIN1691 GG25

GB9439-88 HT250

3

disc seat ring

stainless steel

DIN17440 X20Cr13

GB1220-92 2Cr13

2

body seat ring

stainless steel

DIN17440 X20Cr13

GB1220-92 2Cr13

1

body

cast iron

DIN1691 GG25

GB9439-88 HT250

NO.

Name of part

Material

Germany standard

Chinese standard
