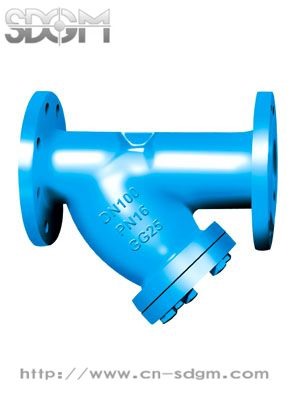

DG-Y-16 FLANGE END STRAINER

Scope of Application:

NORMINAL PRESSURE		1.6MPa
SUITABLE MEDIUM		WATER, OIL,STEAM
TEST PRESSURE	Intensity	2.4MPa
Temperature		≤100°C

Technical Requirement:

1.Flange Drilled Conforms To BS EN 1092.

2.Face To Face Dimension Conforms To Series 1 Of BS EN 558-1.

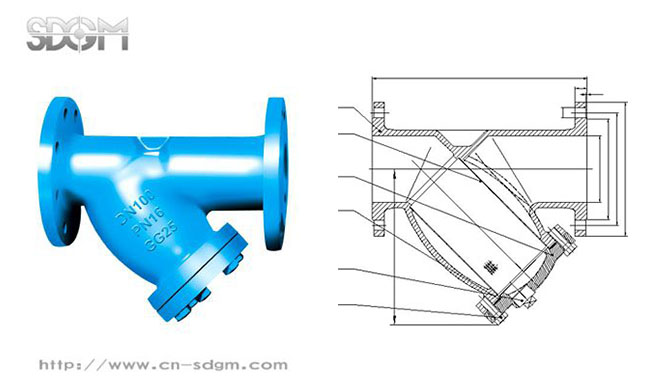

DN	L	D	D1	D2	B	f	n-d	H
15	130	95	65	46	14	2	4-14	76
20	150	105	75	56	16	2	4-14	90
25	160	115	85	65	16	3	4-14	108
32	180	140	100	76	18	3	4-19	117
40	200	150	110	84	18	3	4-19	132
50	230	165	125	99	20	3	4-19	156
65	290	185	145	118	20	3	4-19	176
80	310	200	160	132	22	3	8-19	199
100	350	220	180	156	24	3	8-19	240
125	400	250	210	184	26	3	8-19	292
150	480	285	240	211	26	3	8-23	320
200	600	340	295	266	30	3	12-23	399
250	730	405	355	319	32	3	12-28	516
300	850	460	410	370	32	4	12-28	568
350	980	520	470	438	36	4	16-28	648
400	1100	580	525	490	38	4	16-31	759

6	Bolt	steel	DIN17100 RSt37-2	GB700-88 Q235
5	Screw plug	cast brass	DIN G-CuZn37Pb	GB1176-87 ZCuZn40Pb2
4	Gasket	graphite		GB3518-83 LC35-999
3	Bonnet	cast iron	DIN1691 GG25	GB9439-88 HT250
2	Screen	stainless steel	DIN17440 X5CrNi189	0Cr18Ni9
1	Body	cast iron	DIN1691 GG25	0Cr18Ni9
NO.	Name of part	Material	Germany standard	Chinese standard
